Matrix properties
number of rows	2,870
number of columns	2,870
nonzeros	23,754
structural full rank?	yes
structural rank	2,870
# of blocks from dmperm	180
# strongly connected comp.	180
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	100%
type	real
structure	unsymmetric
Cholesky candidate?	no
positive definite?	no

author	A. Baggag, Y. Saad
editor	A. Baggag, Y. Saad
date	1994
kind	computational fluid dynamics problem
2D/3D problem?	yes

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	65,420
Cholesky flop count	2.5e+06
nnz(L+U), no partial pivoting, with AMD	127,970
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	100,227
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	187,313

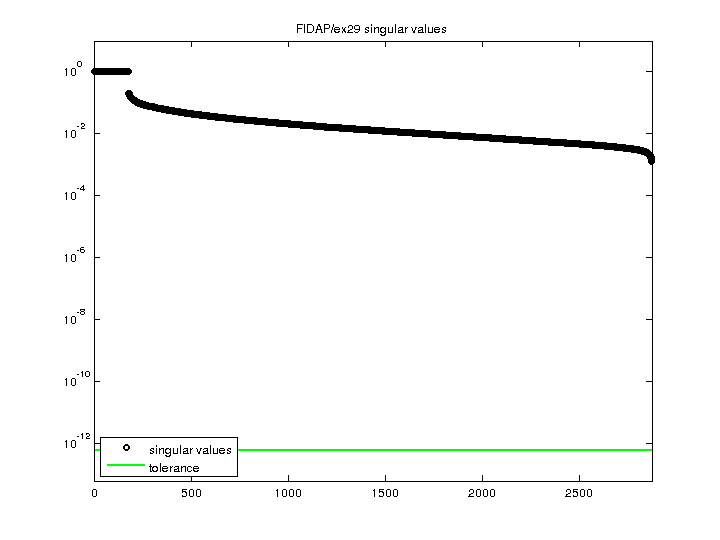

SVD-based statistics:
norm(A)	1
min(svd(A))	0.00133065
cond(A)	751.515
rank(A)	2,870
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.

Maintained by Tim Davis, last updated 12-Mar-2014.
Matrix pictures by cspy, a MATLAB function in the CSparse package.
Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
