Matrix: Engwirda/airfoil_2d

Description: Unstructured 2D mesh (airfoil), from Darren Engwirda

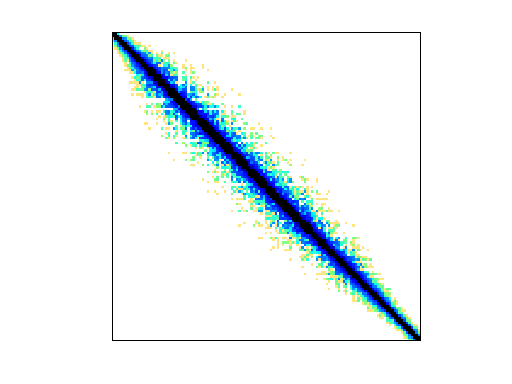

Engwirda/airfoil_2d graph Engwirda/airfoil_2d graph

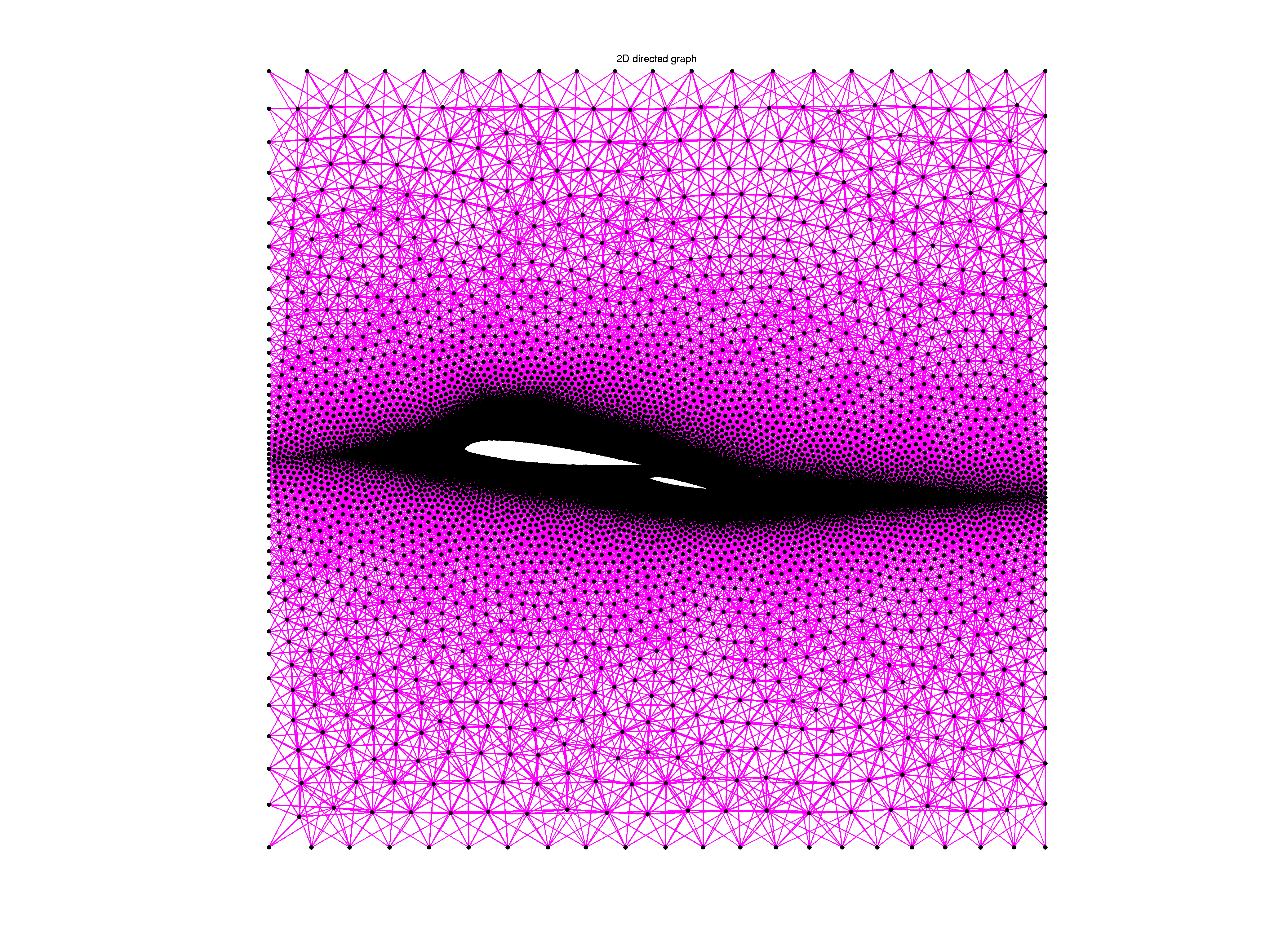

(bipartite graph drawing) (graph drawing of A+A')

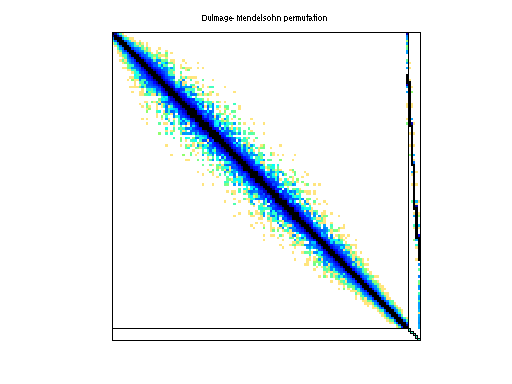

Engwirda/airfoil_2d dmperm of Engwirda/airfoil_2d
Engwirda/airfoil_2d graph

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Engwirda
  • Click here for a description of the Engwirda group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 3 MB. Use UFget(1319) or UFget('Engwirda/airfoil_2d') in MATLAB.
  • download in Matrix Market format, file size: 4 MB.
  • download in Rutherford/Boeing format, file size: 3 MB.

    Matrix properties
    number of rows14,214
    number of columns14,214
    nonzeros259,688
    structural full rank?yes
    structural rank14,214
    # of blocks from dmperm638
    # strongly connected comp.638
    explicit zero entries0
    nonzero pattern symmetry 98%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorD. Engwirda
    editorT. Davis
    date2006
    kindcomputational fluid dynamics problem
    2D/3D problem?yes

    Additional fieldssize and type
    coordfull 14214-by-2
    tfull 27748-by-3

    Notes:

    trimesh(t,coord(:,1),coord(:,2),A\ones(n,1))


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD1,188,344
    Cholesky flop count1.8e+08
    nnz(L+U), no partial pivoting, with AMD2,362,474
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,623,733
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD3,133,402

    SVD-based statistics:
    norm(A)252672
    min(svd(A))0.141414
    cond(A)1.78676e+06
    rank(A)14,214
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

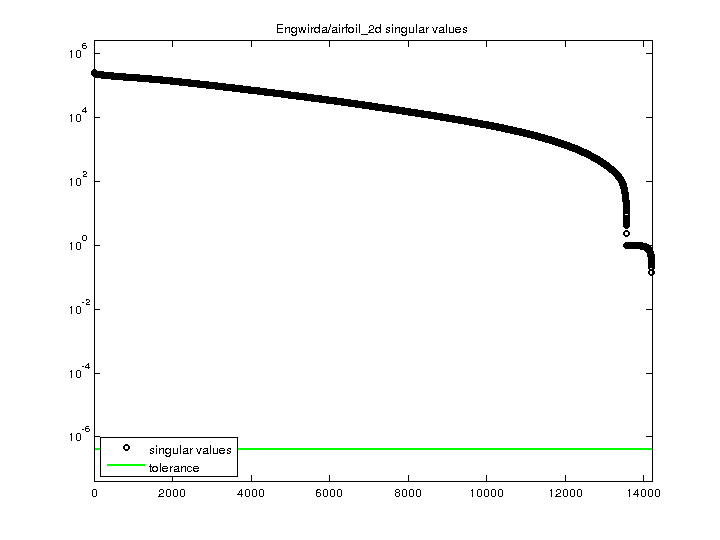

    Engwirda/airfoil_2d svd
