Matrix: Dattorro/EternityII_Etilde

Description: Dattorro Convex Optimization of Eternity II (second reduction)

Dattorro/EternityII_Etilde graph
(bipartite graph drawing)

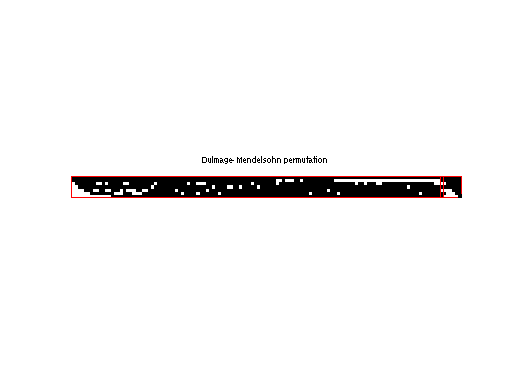

Dattorro/EternityII_Etilde dmperm of Dattorro/EternityII_Etilde

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Dattorro
  • Click here for a description of the Dattorro group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 2 MB. Use UFget(2382) or UFget('Dattorro/EternityII_Etilde') in MATLAB.
  • download in Matrix Market format, file size: 4 MB.
  • download in Rutherford/Boeing format, file size: 2 MB.

    Matrix properties
    number of rows10,054
    number of columns204,304
    nonzeros1,170,516
    structural full rank?yes
    structural rank10,054
    # of blocks from dmperm5
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorJ. Dattorro
    editorT. Davis
    date2011
    kindoptimization problem
    2D/3D problem?no

    Additional fieldssize and type
    bsparse 10054-by-1

    Notes:

    Dattorro Convex Optimization of Eternity II, Jon Dattoro

    An Eternity II puzzle (http://www.eternityii.com/) problem
    formulation A*x=b is discussed thoroughly in section 4.6.0.0.15 of
    the book Convex Optimization & Euclidean Distance Geometry which
    is freely available. That A matrix is obtained by presolving a
    sparse 864,593-by-1,048,576 system.  The 3 problems in this set
    contains three successive reductions, each equivalent to that
    larger system:

       * EternityII_E: a 11077-by-262144 system E*x=tau, where tau is
           11077-by-1.  This is the million column Eternity II matrix
           having redundant rows and columns removed analytically.
           In the UF Collection, E is the Problem.A matrix, and tau
           is Problem.b.  All entries in E are from the set {-1,0,1,2}.
           tau is binary and very sparse.

       * EternityII_Etilde: a 10054-by-204304 system Etilde*x=tautilde
           with tautilde of size 10054-by-1.  The system has columns
           removed corresponding to some known zero variables
           (removal produced dependent rows).  In the UF Collection,
           Etilde is the Problem.A matrix, and tautilde is Problem.b.
           All entries in Etilde are from the set {-1,0,1}.
           tautilde is binary and very sparse.

       * EternityII_A: a 7362-by-150638 system A*x=b, where b is
           7362-by-1.  This system has columns removed not in
           smallest face (containing tautilde) of polyhedral cone K =
           { Etilde*x | x >= 0 }.

    The following linear program is a very difficult problem that
    remains unsolved:

        maximize_x z'*x, subject to A*x=b and x >= 0

    The matrix A in the EternityII_A problem is sparse, having only
    782,087 nonzeros.  All entries of A are integers from the set
    {-1,0,1}.  The vector b is binary, with only 358 nonzeros.

    Direction vector z is determined by Convex Iteration:

        maximize_z z'*x^{star},
        subject to 0 <= z <= 1 and z'*1 = 256

    (for a vector x, x >= 0 means all(x>-0) in MATLAB notation)

    These two problems are iterated to find a minimal cardinality
    solution x.  Constraint A*x=b bounds the variable from above by 1.
    Any minimal cardinality solution is binary and solves the Eternity
    II puzzle. The Eternity II puzzle is solved when
    z^{star}'*x^{star} = 256.

    Minimal cardinality of this Eternity II problem is equal to number
    of puzzle pieces, 256.

    Comment: The technique, convex iteration, requires no modification
    (and works very well) when applied instead to mixed integer
    programming (MIP, not discussed in book). There is no modification
    to the linear program statement here except 256 variables,
    corresponding to the largest entries of iterate x^{star}, are
    declared binary.

    For more details, see
    http://www.convexoptimization.com/wikimization/index.php
    /Dattorro_Convex_Optimization_of_Eternity_II (url is wrapped),
    and https://ccrma.stanford.edu/~dattorro/ .


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD683,079,081
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD12,141,269

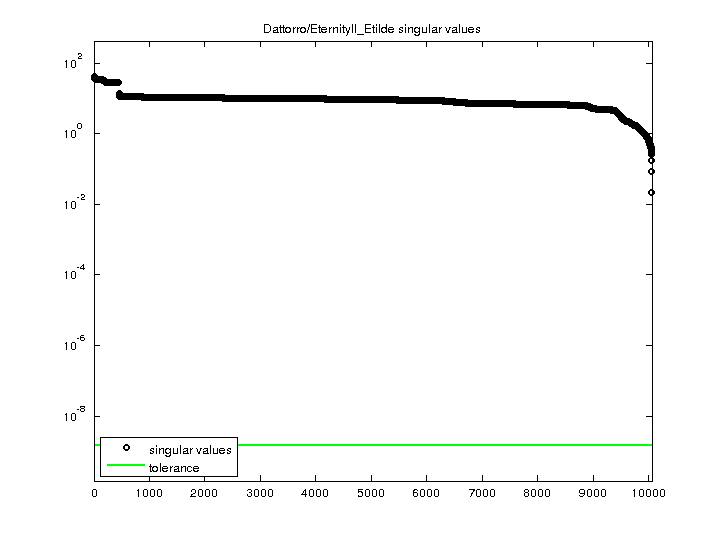

    SVD-based statistics:
    norm(A)42.717
    min(svd(A))0.0220073
    cond(A)1941.03
    rank(A)10,054
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

    Dattorro/EternityII_Etilde svd

    For a description of the statistics displayed above, click here.
