Matrix: Botonakis/thermomech_TC

Description: FEM problem, temperature and deformation of a steel cylinder

Botonakis/thermomech_TC graph
(undirected graph drawing)

Botonakis/thermomech_TC

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Botonakis
  • Click here for a description of the Botonakis group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 7 MB. Use UFget(2257) or UFget('Botonakis/thermomech_TC') in MATLAB.
  • download in Matrix Market format, file size: 5 MB.
  • download in Rutherford/Boeing format, file size: 5 MB.

    Matrix properties
    number of rows102,158
    number of columns102,158
    nonzeros711,558
    structural full rank?yes
    structural rank102,158
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?yes
    positive definite?yes

    authorI. Botonakis
    editorT. Davis
    date2009
    kindthermal problem
    2D/3D problem?yes

    Notes:

    TC and TK are for temperature, dM and dK for deformation

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD3,681,339
    Cholesky flop count4.8e+08
    nnz(L+U), no partial pivoting, with AMD7,260,520
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD6,659,121
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD12,417,253

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.

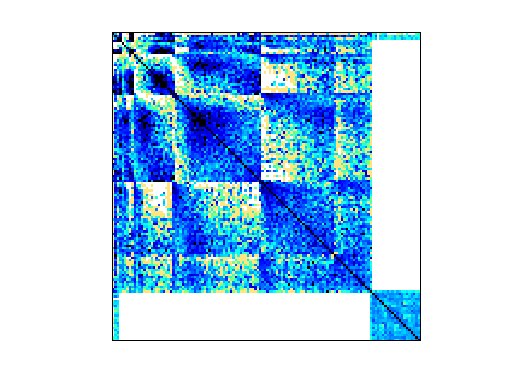

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
