Matrix: Boeing/msc01440

Description: SYMMETRIC TEST MATRIX FROM MSC/NASTRAN CYLF8.OUT2

Boeing/msc01440 graph
(undirected graph drawing)

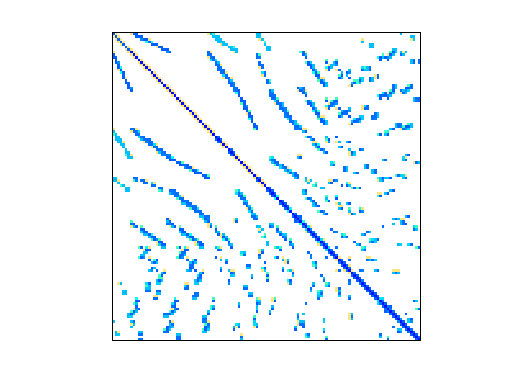

Boeing/msc01440

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Boeing
  • Click here for a description of the Boeing group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 169 KB. Use UFget(359) or UFget('Boeing/msc01440') in MATLAB.
  • download in Matrix Market format, file size: 150 KB.
  • download in Rutherford/Boeing format, file size: 115 KB.

    Matrix properties
    number of rows1,440
    number of columns1,440
    nonzeros44,998
    structural full rank?yes
    structural rank1,440
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries1,272
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?yes
    positive definite?yes

    authorR. Grimes
    editorT. Davis
    date1995
    kindstructural problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD113,509
    Cholesky flop count1.2e+07
    nnz(L+U), no partial pivoting, with AMD225,578
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD210,689
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD405,343

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 1272 explicit zero entries.

    SVD-based statistics:
    norm(A)1.35659e+06
    min(svd(A))0.410358
    cond(A)3.30588e+06
    rank(A)1,440
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

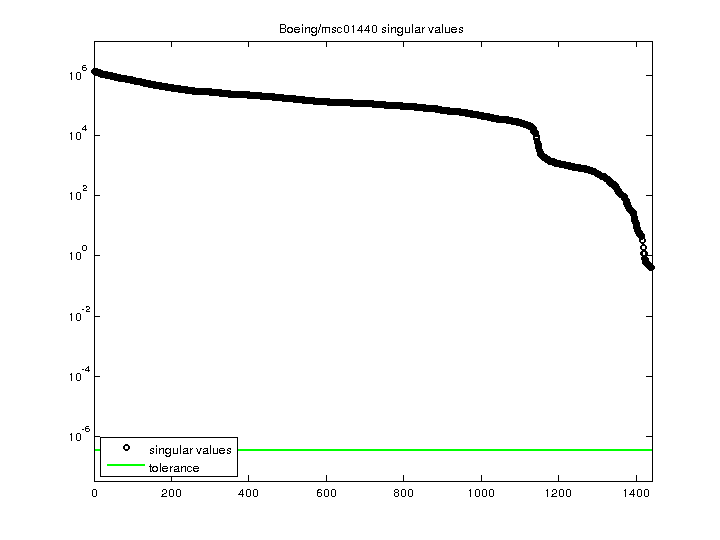

    Boeing/msc01440 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
