Matrix properties
number of rows	726
number of columns	726
nonzeros	34,518
structural full rank?	yes
structural rank	726
# of blocks from dmperm	1
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	real
structure	symmetric
Cholesky candidate?	yes
positive definite?	yes

author	R. Grimes
editor	T. Davis
date	1995
kind	structural problem
2D/3D problem?	yes

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	110,707
Cholesky flop count	2.3e+07
nnz(L+U), no partial pivoting, with AMD	220,688
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	101,362
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	184,917

SVD-based statistics:
norm(A)	4.21959e+09
min(svd(A))	10099.1
cond(A)	417817
rank(A)	726
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

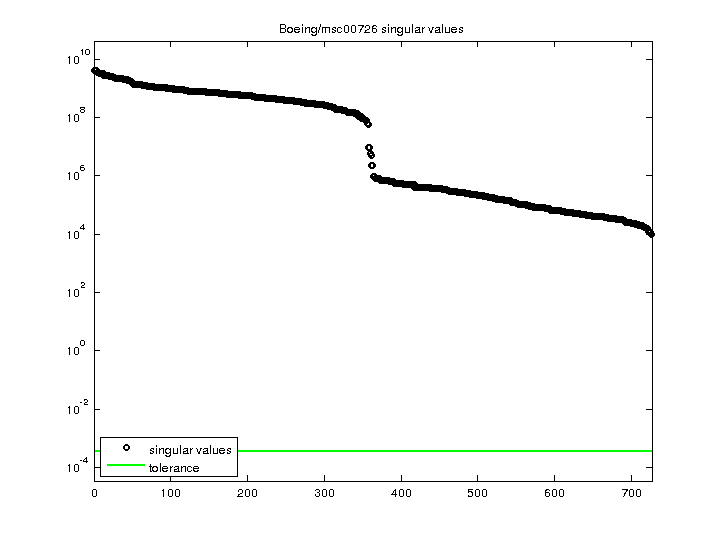

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok
