Matrix properties
number of rows	13,965
number of columns	13,965
nonzeros	968,583
structural full rank?	yes
structural rank	13,965
# of blocks from dmperm	1
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	real
structure	symmetric
Cholesky candidate?	yes
positive definite?	no

author	R. Grimes
editor	T. Davis
date	1995
kind	materials problem
2D/3D problem?	yes

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	6,118,928
Cholesky flop count	4.5e+09
nnz(L+U), no partial pivoting, with AMD	12,223,891
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	5,340,099
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	10,693,425

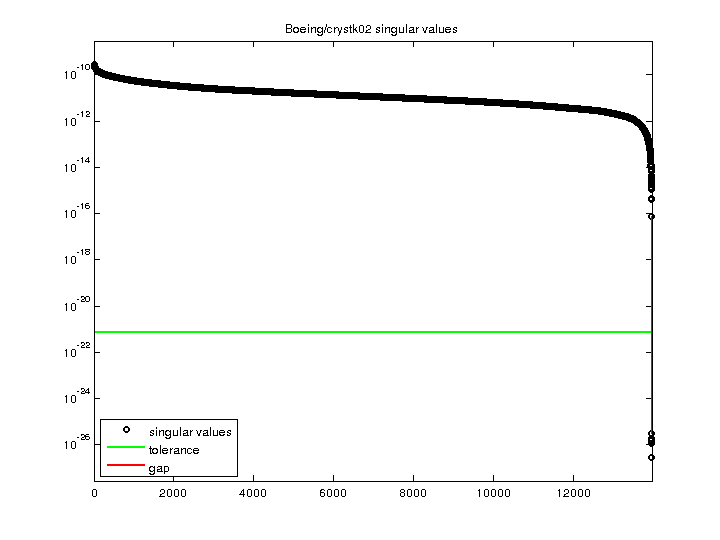

SVD-based statistics:
norm(A)	2.95786e-10
min(svd(A))	2.71581e-27
cond(A)	1.08912e+17
rank(A)	13,959
sprank(A)-rank(A)	6
null space dimension	6
full numerical rank?	no
singular value gap	2.36604e+09

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.
