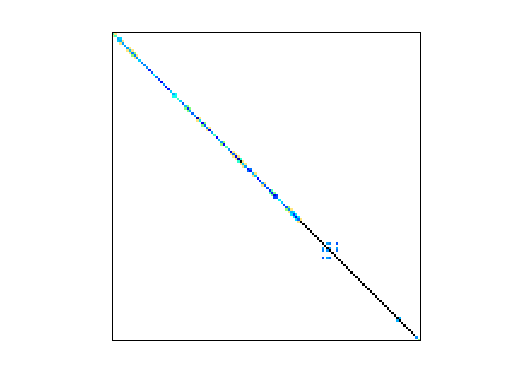

Matrix: Boeing/bcsstm38

Description: MASS MATRIX, AIRPLANE ENGINE COMPONENT

Boeing/bcsstm38 graph
(undirected graph drawing)

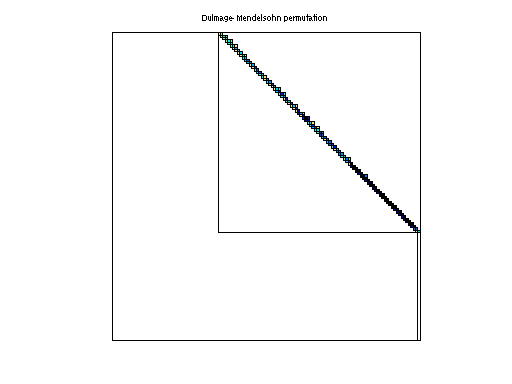

Boeing/bcsstm38 dmperm of Boeing/bcsstm38
scc of Boeing/bcsstm38

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Boeing
  • Click here for a description of the Boeing group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 50 KB. Use UFget(348) or UFget('Boeing/bcsstm38') in MATLAB.
  • download in Matrix Market format, file size: 57 KB.
  • download in Rutherford/Boeing format, file size: 57 KB.

    Matrix properties
    number of rows8,032
    number of columns8,032
    nonzeros10,485
    structural full rank?no
    structural rank5,199
    # of blocks from dmperm3,825
    # strongly connected comp.6,656
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorR. Grimes
    editorT. Davis
    date1995
    kindstructural problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD10,771
    Cholesky flop count2.3e+04
    nnz(L+U), no partial pivoting, with AMD13,510
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD10,963
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD11,658

    SVD-based statistics:
    norm(A)541.104
    min(svd(A))0
    cond(A)Inf
    rank(A)5,112
    sprank(A)-rank(A)87
    null space dimension2,920
    full numerical rank?no
    singular value gap95331.3

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

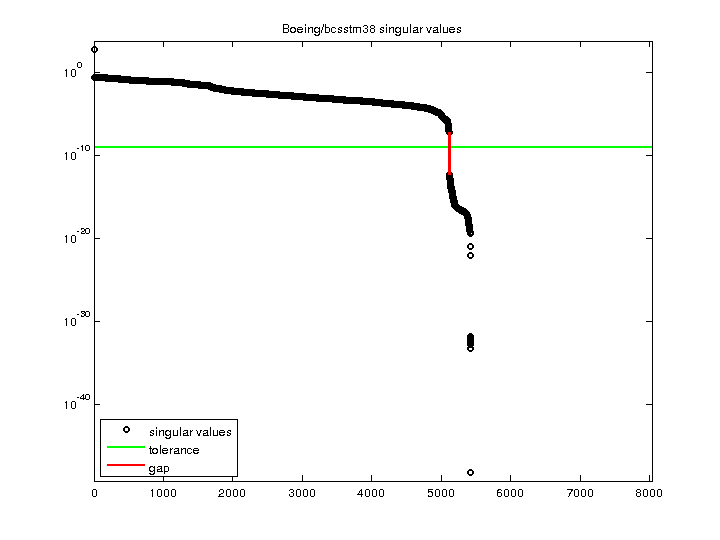

    Boeing/bcsstm38 svd

    For a description of the statistics displayed above, click here.
