Matrix: Boeing/bcsstm35

Description: MASS MATRIX, AUTOMOBILE SEAT FRAME AND BODY ATTACHMENT

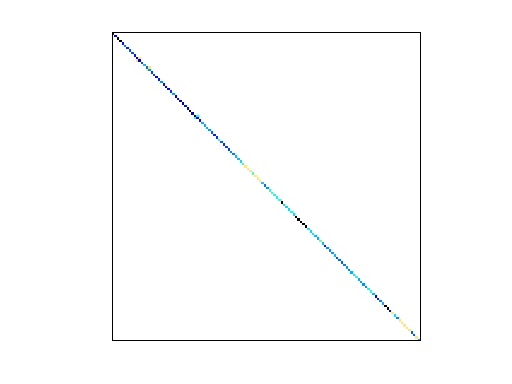

Boeing/bcsstm35 graph
(undirected graph drawing)

Boeing/bcsstm35 dmperm of Boeing/bcsstm35

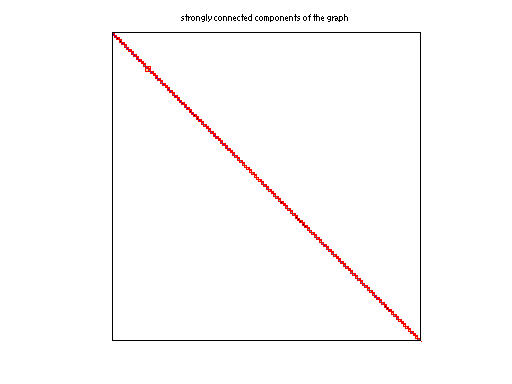

scc of Boeing/bcsstm35

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Boeing
  • Click here for a description of the Boeing group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 116 KB. Use UFget(345) or UFget('Boeing/bcsstm35') in MATLAB.
  • download in Matrix Market format, file size: 135 KB.
  • download in Rutherford/Boeing format, file size: 149 KB.

    Matrix properties
    number of rows30,237
    number of columns30,237
    nonzeros20,619
    structural full rank?no
    structural rank15,803
    # of blocks from dmperm14,796
    # strongly connected comp.29,228
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorR. Grimes
    editorT. Davis
    date1995
    kindstructural problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD32,645
    Cholesky flop count4.3e+04
    nnz(L+U), no partial pivoting, with AMD35,053
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD32,645
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD32,645

    SVD-based statistics:
    norm(A)0.0295055
    min(svd(A))0
    cond(A)Inf
    rank(A)15,609
    sprank(A)-rank(A)194
    null space dimension14,628
    full numerical rank?no
    singular value gap3.17179

    singular values (MAT file):click here
    SVD method used:s = svd (full (A))
    status:ok

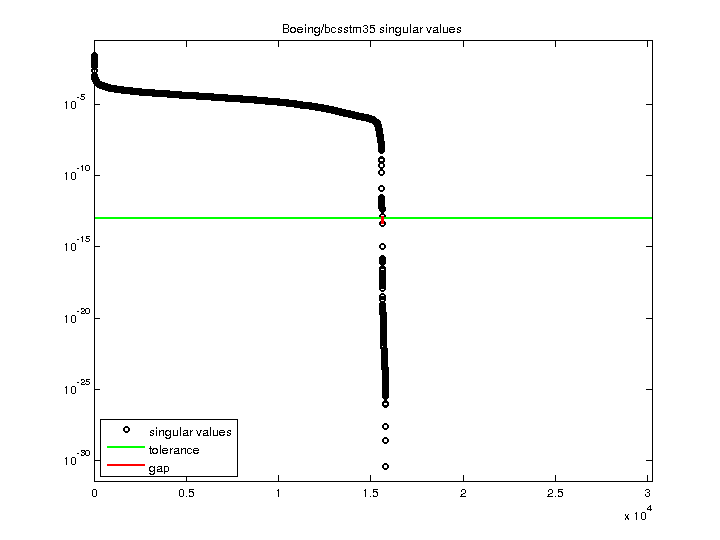

    Boeing/bcsstm35 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
