Matrix: Barabasi/NotreDame_yeast

Description: CCNR network: Barabasi's yeast protein interaction

Barabasi/NotreDame_yeast graph
(undirected graph drawing)

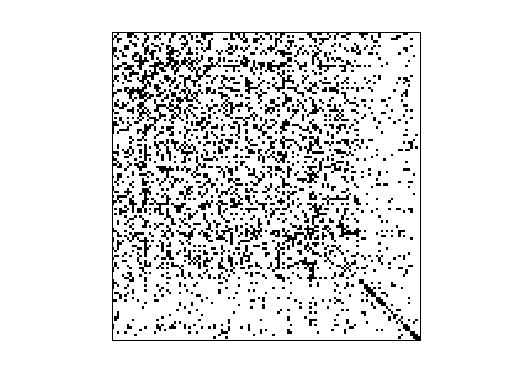

Barabasi/NotreDame_yeast

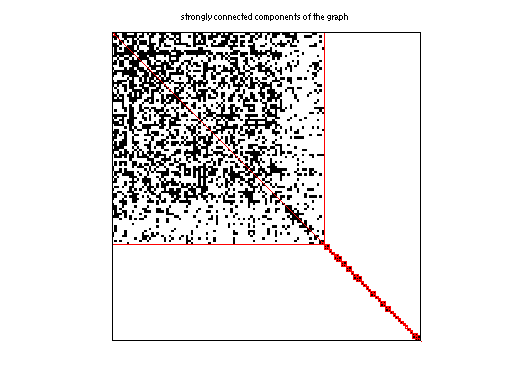

scc of Barabasi/NotreDame_yeast

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Barabasi
  • Click here for a description of the Barabasi group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 12 KB. Use UFget(1511) or UFget('Barabasi/NotreDame_yeast') in MATLAB.
  • download in Matrix Market format, file size: 8 KB.
  • download in Rutherford/Boeing format, file size: 8 KB.

    Matrix properties
    number of rows2,114
    number of columns2,114
    nonzeros4,480
    # strongly connected comp.417
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorH. Jeong, S. Mason, A. Barabasi, Z. Oltvai
    editorH. Jeong
    date2001
    kindundirected graph
    2D/3D problem?no

    Notes:

    http://www.nd.edu/~networks

    SVD-based statistics:
    norm(A)7.54124
    min(svd(A))0
    cond(A)Inf
    rank(A)1,263
    null space dimension851
    full numerical rank?no
    singular value gap8.45867e+12

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    Barabasi/NotreDame_yeast svd

    For a description of the statistics displayed above, click here.
