Matrix: Bai/pde900

Description: MODEL PDE PROBLEM, H. ELMAN NX = NY = 30

Bai/pde900 graph
(undirected graph drawing)


Bai/pde900

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Bai
  • Click here for a description of the Bai group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 35 KB. Use UFget(325) or UFget('Bai/pde900') in MATLAB.
  • download in Matrix Market format, file size: 38 KB.
  • download in Rutherford/Boeing format, file size: 37 KB.

    Matrix properties
    number of rows900
    number of columns900
    nonzeros4,380
    structural full rank?yes
    structural rank900
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetry 50%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorH. Elman
    editorZ. Bai, D. Day, J. Demmel, J. Dongarra
    date1982
    kind2D/3D problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD10,231
    Cholesky flop count1.9e+05
    nnz(L+U), no partial pivoting, with AMD19,562
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD16,294
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD29,496

    SVD-based statistics:
    norm(A)10.4451
    min(svd(A))0.0684645
    cond(A)152.562
    rank(A)900
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

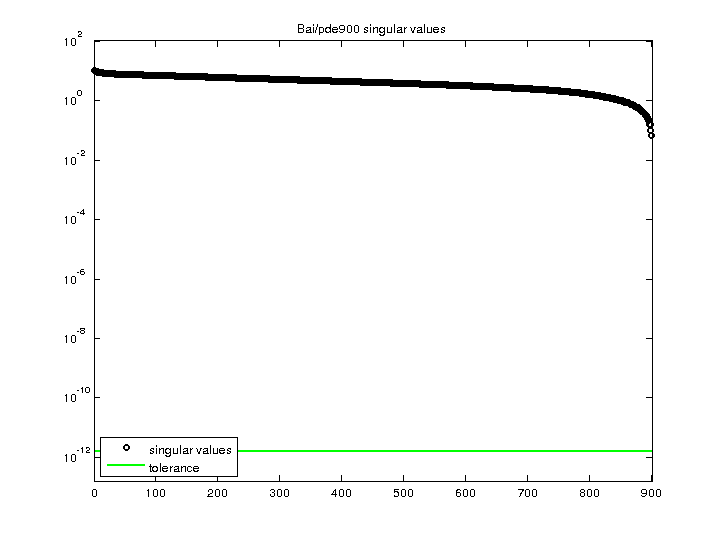

    Bai/pde900 svd

    For a description of the statistics displayed above, click here.
