Matrix properties
number of rows	512
number of columns	512
nonzeros	2,480
structural full rank?	yes
structural rank	512
# of blocks from dmperm	1
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	98%
numeric value symmetry	91%
type	real
structure	unsymmetric
Cholesky candidate?	no
positive definite?	no

author	H. Dong
editor	Z. Bai, D. Day, J. Demmel, J. Dongarra
date	1993
kind	electromagnetics problem
2D/3D problem?	yes

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	4,984
Cholesky flop count	7.8e+04
nnz(L+U), no partial pivoting, with AMD	9,456
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	6,669
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	12,109

SVD-based statistics:
norm(A)	2.42202
min(svd(A))	0.000210787
cond(A)	11490.4
rank(A)	512
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

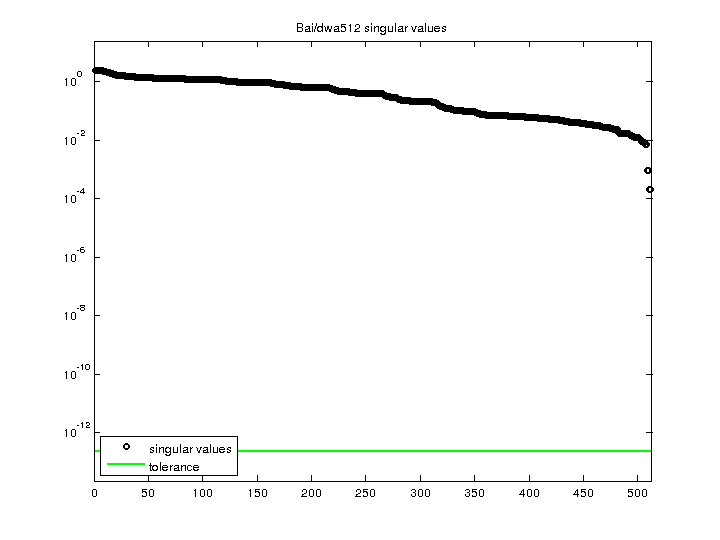

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.

Maintained by Tim Davis, last updated 12-Mar-2014.
Matrix pictures by cspy, a MATLAB function in the CSparse package.
Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
