Matrix: Bai/dw8192

Description: SQUARE DIELECTRIC WAVEGUIDE, H. DONG

Bai/dw8192 graph Bai/dw8192 graph
(bipartite graph drawing) (graph drawing of A+A')

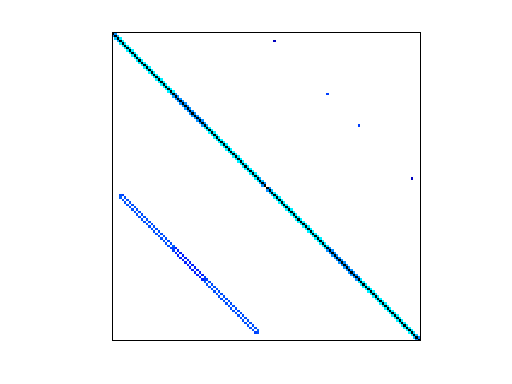

Bai/dw8192

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Bai
  • Click here for a description of the Bai group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 111 KB. Use UFget(1615) or UFget('Bai/dw8192') in MATLAB.
  • download in Matrix Market format, file size: 203 KB.
  • download in Rutherford/Boeing format, file size: 113 KB.

    Matrix properties
    number of rows8,192
    number of columns8,192
    nonzeros41,746
    structural full rank?yes
    structural rank8,192
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 96%
    numeric value symmetry 92%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorH. Dong
    editorZ. Bai, D. Day, J. Demmel, J. Dongarra
    date1993
    kindelectromagnetics problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD212,151
    Cholesky flop count1.9e+07
    nnz(L+U), no partial pivoting, with AMD416,110
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD378,664
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD688,903

    SVD-based statistics:
    norm(A)109.828
    min(svd(A))2.87914e-05
    cond(A)3.8146e+06
    rank(A)8,192
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

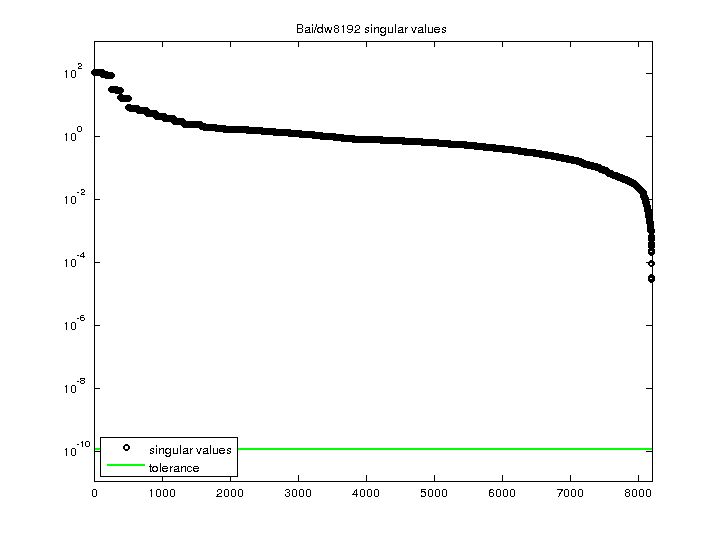

    Bai/dw8192 svd

    For a description of the statistics displayed above, click here.
