Matrix: Bai/dw256B

Description: SQUARE DIELECTRIC WAVEGUIDE, H. DONG

Bai/dw256B graph Bai/dw256B graph
(bipartite graph drawing) (graph drawing of A+A')


Bai/dw256B

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Bai
  • Click here for a description of the Bai group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 8 KB. Use UFget(311) or UFget('Bai/dw256B') in MATLAB.
  • download in Matrix Market format, file size: 13 KB.
  • download in Rutherford/Boeing format, file size: 9 KB.

    Matrix properties
    number of rows512
    number of columns512
    nonzeros2,500
    structural full rank?yes
    structural rank512
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 97%
    numeric value symmetry 88%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorH. Dong
    editorZ. Bai, D. Day, J. Demmel, J. Dongarra
    date1993
    kindelectromagnetics problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD5,362
    Cholesky flop count9.8e+04
    nnz(L+U), no partial pivoting, with AMD10,212
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD6,941
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD12,893

    SVD-based statistics:
    norm(A)0.977911
    min(svd(A))0.26198
    cond(A)3.73277
    rank(A)512
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    Bai/dw256B svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.

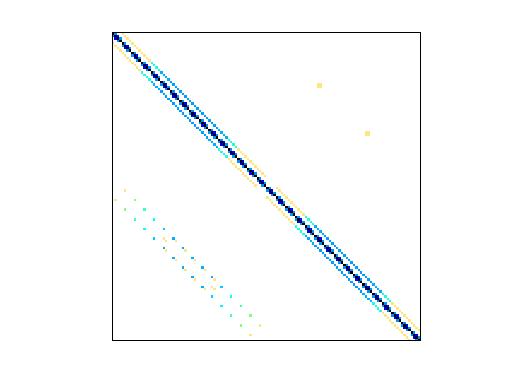

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
