Matrix: Bai/bwm200

Description: BRUSSELATOR WAVE MODEL IN TRANSPORT INTERACTION OF CHEMICAL SOLUTIONS

Bai/bwm200 graph
(undirected graph drawing)


Bai/bwm200

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Bai
  • Click here for a description of the Bai group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 2 KB. Use UFget(298) or UFget('Bai/bwm200') in MATLAB.
  • download in Matrix Market format, file size: 3 KB.
  • download in Rutherford/Boeing format, file size: 2 KB.

    Matrix properties
    number of rows200
    number of columns200
    nonzeros796
    structural full rank?yes
    structural rank200
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetry 66%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorY. Saad
    editorZ. Bai, D. Day, J. Demmel, J. Dongarra
    date1992
    kindchemical process simulation problem
    2D/3D problem?no

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD597
    Cholesky flop count1.8e+03
    nnz(L+U), no partial pivoting, with AMD994
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD597
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD990

    SVD-based statistics:
    norm(A)1235.56
    min(svd(A))0.512142
    cond(A)2412.53
    rank(A)200
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

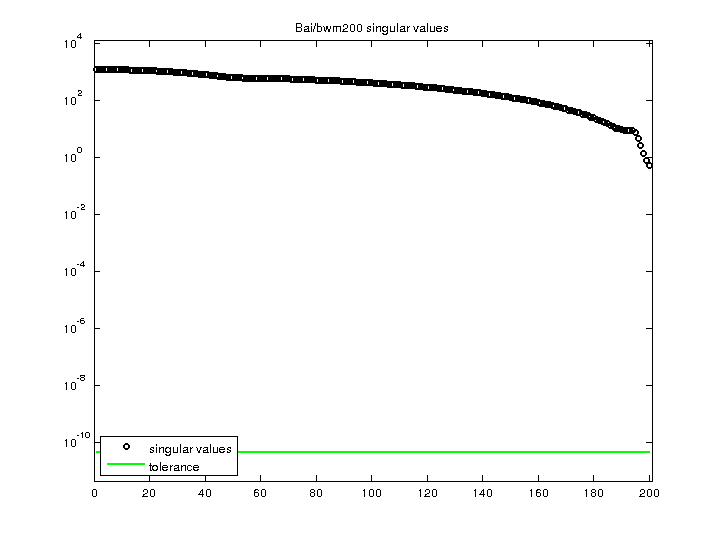

    Bai/bwm200 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
