Matrix properties
number of rows	2,559
number of columns	2,559
nonzeros	8,184
structural full rank?	no
structural rank	2,390
# of blocks from dmperm	2
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	binary
structure	symmetric
Cholesky candidate?	no
positive definite?	no

author	R. Diekmann, R. Preis
editor	R. Diekmann, R. Preis
date	1998
kind	2D/3D problem
2D/3D problem?	yes

Additional fields	size and type
coord	full 2559-by-2

Notes:

AG-Monien Graph Collection, Ralf Diekmann and Robert Preis
http://www2.cs.uni-paderborn.de/fachbereich/AG/monien/RESEARCH/PART/graphs.html

A collection of test graphs from various sources.  Many of the graphs
include XY or XYZ coordinates.  This set also includes some graphs from
the Harwell-Boeing collection, the NASA matrices, and some random matrices
which are not included here in the AG-Monien/ group of the UF Collection.
In addition, two graphs already appear in other groups:

   AG-Monien/big : same as Nasa/barth5, Pothen/barth5 (not included here)
   AG-Monien/cage_3_11 : same as Pajek/GD98_c (included here)

The AG-Monien/GRID subset is not included.  It contains square grids that
are already well-represented in the UF Collection.

Six of the problem sets are included as sequences, each sequence being
a single problem instance in the UF Collection:

   bfly:  10 butterfly graphs 3..12
   cage:  45 cage graphs 3..12
   cca:   10 cube-connected cycle graphs, no wrap
   ccc:   10 cube-connected cycle graphs, with wrap
   debr:  18 De Bruijn graphs
   se:    13 shuffle-exchange graphs

Problem.aux.G{:} are the graphs in these 6 sequences.  Problem.aux.Gname{:}
are the original names of each graph, and Problemm.aux.Gcoord{:} are the
xy or xyz coordinates of each node, if present.

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	12,860
Cholesky flop count	6.9e+04
nnz(L+U), no partial pivoting, with AMD	23,161
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	17,480
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	19,427

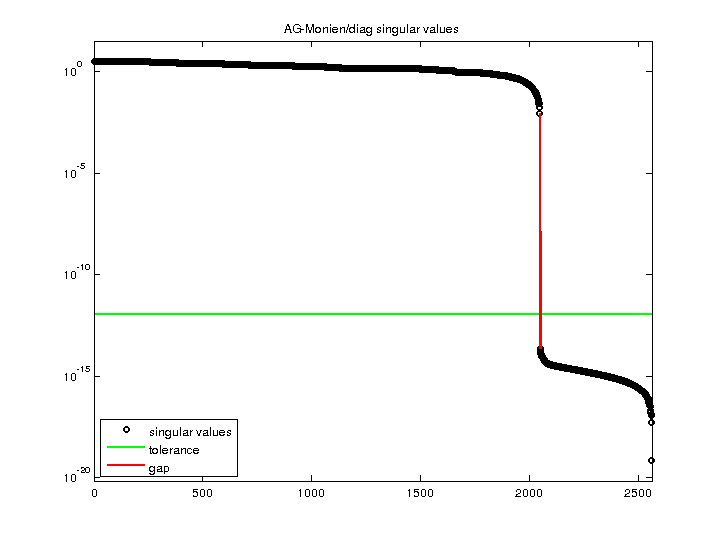

SVD-based statistics:
norm(A)	3.26591
min(svd(A))	6.97151e-20
cond(A)	4.68466e+19
rank(A)	2,046
sprank(A)-rank(A)	344
null space dimension	513
full numerical rank?	no
singular value gap	3.83448e+11

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.

Maintained by Tim Davis, last updated 12-Mar-2014.

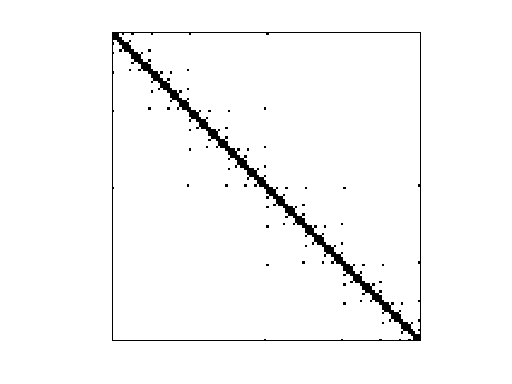

Matrix pictures by cspy, a MATLAB function in the CSparse package.
