Swarm-NG  1.1
swarm::integrator Class Referenceabstract

Interface class for all integrators. More...

#include <integrator.hpp>

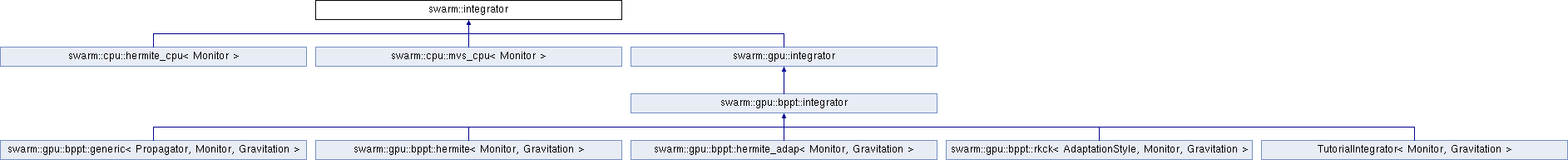

Inheritance diagram for swarm::integrator:
swarm::cpu::hermite_cpu< Monitor > swarm::cpu::mvs_cpu< Monitor > swarm::gpu::integrator swarm::gpu::bppt::integrator swarm::gpu::bppt::generic< Propagator, Monitor, Gravitation > swarm::gpu::bppt::hermite< Monitor, Gravitation > swarm::gpu::bppt::hermite_adap< Monitor, Gravitation > swarm::gpu::bppt::rkck< AdaptationStyle, Monitor, Gravitation > TutorialIntegrator< Monitor, Gravitation >

Public Member Functions

 integrator (const config &cfg)
 Inetgrator class should be configurable. Derived instances should also have a constructor with similar signature and pass on the config parameter.

virtual void integrate ()
 Interfaces function to integrate, for use by general user. More...

virtual void flush_log ()
 Flush the host log.

virtual defaultEnsembleget_ensemble ()
 Access the ensemble subject to integration.

virtual void set_ensemble (defaultEnsemble &ens)
 Set the ensemble subject to integration.

virtual void set_destination_time (const double &destination_time)
 Set the time marker to end the integration.

virtual void set_log_manager (log::Pmanager &l)
 accessor function to set the manager for log output


Static Public Member Functions

static shared_ptr< integratorcreate (const config &cfg)
 Loads an integrator using the plugin system. More...


Static Public Attributes

static const int _default_max_iterations = 10000000
 Default value for maximum number of iterations. c.f. _max_iterations.

static const int _default_max_attempts = 1000000
 Default value for maximum number of attempts. c.f. _max_attempts.


Protected Member Functions

virtual void launch_integrator ()=0
 Integrater implementation provided by derived instance.


Protected Attributes

defaultEnsemble _ens
 ensemble to be integrated

double _destination_time
 the timestamp at which the integration should finish

log::Pmanager _logman
 log manager for log output, set to manager::default() by default

gpulog::host_log * _log
 log object, obtained from log manager

int _max_iterations
 Maximum number of iterations per each integration step. c.f. integrate for usage.

int _max_attempts
 Maximum number of attempts to complete the integration. c.f. integrate for usage.


Detailed Description

Interface class for all integrators.

This class sets out the general functions to use an integrator for external applications.

All CPU integrators should be based on this class. It contains all the variables required for basic integrations. User variables can be added in derived instances.

GPU integrators should be based on gpu::integrator.

To add your integrator to swarm library look at plugin development guide.

Definition at line 49 of file integrator.hpp.

Member Function Documentation

Pintegrator swarm::integrator::create ( const config cfg)
static

Loads an integrator using the plugin system.

Dynamically load integrators based on the configuration.

value of cfg["integrator"] is used to identify the plugin to be instantiated. The integrator plugin usually requires additional configuration.

The "integrator_" suffix is automatically added to the the value of cfg["integrator"]. Example: To load hermite integrator set cfg["integrator"]="hermite" and then the plugin "integrator_hermite" will be loaded and instantiated.

If cfg["integrator"] contains an invalid value then plugin_not_found exception is raised.

to see the list of plugins available use swarm -P.

Must use factory class to dynamically load integrator subclass instead of using constructor. Users can define their own integrators that can be loaded dynamically later.

Parameters
[in]cfgconfiguration class

Definition at line 129 of file integrator.cpp.

References swarm::plugin::instance().

Referenced by main().

void swarm::integrator::integrate ( )
virtual

Interfaces function to integrate, for use by general user.

Calls launch_integrator() several times up to the value specified in _max_attempts until all the systems are inactive. Each call can go through at most a limited number of iterations specified in _max_iterations .

To set the parameters for integration use set_ensemble(ens), set_destination_time(t), set_log_manager(l)

Reimplemented in swarm::gpu::integrator.

Definition at line 91 of file integrator.cpp.

References _ens, _logman, _max_attempts, launch_integrator(), and swarm::number_of_active_systems().


The documentation for this class was generated from the following files:
