Data Structures, Algorithms, & Applications in Java
Chapter 16, Exercise 13

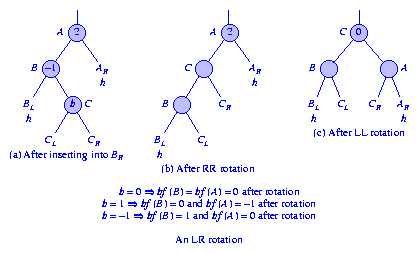

Figure (b) shows the tree after an RR rotation at vertex B and Figure (c) shows the result of performing an LL rotation at vertex A of the tree of Figure (b). The resulting tree is the same as that shown in Figure 16.5 (c).
