Cryptology - I: Homework 2 - DES

Instructors: R.E. Newman-Wolfe and M.S. Schmalz

In this homework, we cover some important properties of the DES transformation. All problems are taken from the textbook (Stinson).

Grads and Undergrads - Do 3.1, 3.2, 3.3a, 3.3d, 3.5

Problem 3.1. Prove that DES decryption can be done by applying the DES encryption algorithm with the key schedule reversed.

Answer: Since Li = Ri-1 and Ri = Li-1 XOR f(ki,Ri-1), and for decryption we know Li, Ri, and ki, we can compute

In order for this to work the DES encryption at each stage must be applied with the left and right halves reversed - this is the case since the output ciphertext is given by IP-1(R16,L16). Since the i-th values are used to compute the (i-1)-st values, ki must be used in reversing the key schedule.


Figure HW-2.1a. DES configuration for Problem 3.1, where denotes the initial permutation.
Note that in Step 3 (Decryption), f is applied to L, but not to R.

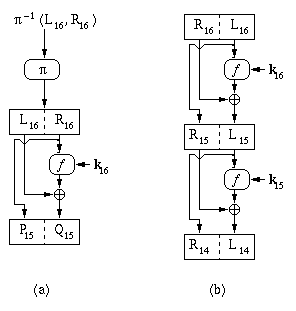

Figure HW-2.1b. Details of DES configuration for Problem 3.1: (a) role of initial permutation, and (b) two-stage computation. Note: In b), if L and R are reversed
after , then they remain reversed through all 16 stages.

In Figure HW-2.1b, P16 = R16 but L15 = R16 XOR f(k16, L16). Similarly, Q15 = L16 XOR f(k16, R16) but R15 = L16. Thus, intermediate stages must be reversed, since c = -1(R16,L16). In the final stage of decryption, these partitions are again reversed.

Problem 3.2. Let DES(a,k) represent the encryption of plaintext a with key k using the DES cryptosystem. Suppose c = DES(a,k) and cc = DES(a',k'), where (') denotes bitwise complement. Prove that cc = c' (i.e., if we complement the plaintext and the key, then the ciphertext is also complemented). Note that this can be proved using only the "high-level" description of DES -- the actual structure of S-boxes and other system components are irrelevant.

Answer: The permutations, expansion permutation (EP), selection permutation or permuted choice (PC), key rotations and key selection permutation all behave the same regardless of their input, since DES is closed under complement. Thus, a bit complemented in the input will be complemented in the output, at the position assigned to that bit. This is not true of the S-box computation.

Letting a{0,1}X and denoting the unitary vector on X as 1 = (1,1,...,1), note that the complement of a is given by a' = 1 XOR a. Letting b{0,1}X, we have

a' XOR b' = 1 XOR a XOR 1 XOR b = a XOR b ,

and

a' XOR b = 1 XOR a XOR b = (a XOR b)' .

After the initial permutation, we have L0' and R0'. Since Li = Ri-1, we will obtain Li' after each stage with Ri-1' as input. If we let A = Ri, B = EP(A), C = B XOR ki, D = S(C) where S denotes an S-box, and E = PC(D), then if Ac = A' and Bc = B' (i.e., the EP or expansion permutation preserves complement), then

Cc = B' XOR ki' = B XOR ki = C.

Since Cc = C, the output of the S-boxes and permuted choices will be of similar form
(i.e., Dc = D' and Ec = E'). Due to the fact that, after the i-th stage, the output's right partition

Ri = Ec XOR Li-1' = E XOR Li-1' = Ri' ,

the inverse input permutation IP-1 applied to (L16', R16') will result in the DES output being the complement of the ciphertext.

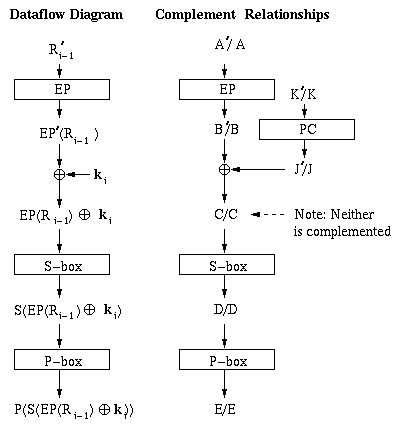

Figure HW-2.2a. Dataflow and complement relationships for DES using complemented keys and ciphertext. Note that the output of the XOR operation (denoted by C/C) is not complemented.

The complement relationships are proven, as shown in the following figure, and in the preceding development.


Figure HW-2.2b. Single DES stage that illustrates the method by which complement relationships in Figure HW-2.2a are obtained.

Additional proof is given as follows:
  1. If Ac = A', then EP(A') = EP'(A). Therefore, bits are merely shuffled and copied, regardless of their value.
  2. Similarly, Bc = B', since C = B XOR J and Thus, Cc = C.
  3. So, Dc = D and Ec = I, since these are similar functions on the same inputs.
To obtain Q, we observe that Q = Li-1' XOR E = 1 XOR Li-1 XOR E, which implies that
Q = 1 XOR Ri Ri'.

Problem 3.3. One way to strengthen DES is by double encryption: Given two keys k1 and k2, and a binary input vector a, define c = ek1(ek2(a)), which is merely the product of DES with itself. If it happened that the encryption function ek2 was the same as the decryption function dk1, then k1 and k2 are said to be dual keys. (This is very undesirable for double encryption, since the resulting ciphertext is identical to the plaintext). A key is self-dual if it is its own dual key. (Do (a) and (d) only.)

Note: Dual keys (denoted by k and k~), are those keys for which the key schedule of k~ is the reverse key schedule of k.

3.3a. Prove that if C0 is all zeroes or all ones and D0 is all zeroes or all ones, then k is self-dual.

Answer: If the key is all zeroes or all ones, then all intermediate keys are the same, and the key is self-dual.

3.3d. Prove that the following pairs of keys (given in hexadecimal notation) are dual:

        E001E001F101F101    01E001E001F101F1
        FE1FFE1FFE0EFE0E    1FFE1FFE0EFE0EFE
        E01FF01FFF10FF10    1FE01FE00EF10EF1

Answer: Simply confirm that the key schedule of k is the reverse of k~.

Problem 3.5. Suppose a sequence of plaintext blocks is encrypted using DES, producing a corresponding sequence of ciphertext blocks. Let one ciphertext block be transmitted incorrectly (i.e., some ones are inadvertently changed to zeroes and vice versa). Show that the number of plaintext blocks that will be decrypted incorrectly is equal to one if ECB or OFB modes were used for encryption; and equal to two if CBC or CFB modes were used.

Answer: In ECB and OFB modes, the only input to a ciphertext block is the plaintext block corresponding to it (and the keys for DES, the initial vector, etc.) Thus, only one ciphertext block will be affected by a plaintext block, and vice versa.

In CFB and CBC, chaining is used, so multiple blocks will be affected. Referring to the following figure, if (in CBC mode) a ciphertext block ci' yi, then the corresponding intermediate key xi' will be incorrect (assuming that the preceding stage ci-1 was correct). Since

xi+1' = yi' XOR dk(yi+1)

if yi+1 is correct, then xi+1' will be incorrect. Since xi+2 only depends on yi+1 and yi+2, the intermediate key xi+2 will be correct.


Figure HW-2.5. DES CBC encryption mode.

%%%%LEFT OFF HERE%%%

Graduate Students Only - Do 3.7 or 3.8

Problem 3.7. Compute the probabilities (p1, p2, and p3) of the following three-round characteristic:
           L0' = 0020000816          R0' = 0000040016
           L1' = 0000040016          R1' = 0000000016
           L2' = 0000000016          R2' = 0000040016
           L3' = 0000040016          R3' = 0020000816

Answer: Following through the computations as given in the book, we have that

Problem 3.8. Assume that there exists a differential attack on DES, that uses the following characteristic (which is a special case of the characteristic given in Figure 3.10):
           L0' = 2000000016          R0' = 0000000016
           L1' = 0000000016          R1' = 2000000016
with p1 = 1. Answer part (b) only.

Answer: Following through the computations as given in the book, we have that

This concludes the assignment for Homework #2, Fall 1996. If you have a question,please feel free to ask the instructors via E-mail or in class.
