Matrix properties
number of rows	237
number of columns	237
nonzeros	1,017
structural full rank?	yes
structural rank	237
# of blocks from dmperm	2
# strongly connected comp.	2
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	real
structure	symmetric
Cholesky candidate?	yes
positive definite?	yes

author	H. Simon
editor	I. Duff, R. Grimes, J. Lewis
date	1982
kind	structural problem
2D/3D problem?	yes

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	704
Cholesky flop count	2.3e+03
nnz(L+U), no partial pivoting, with AMD	1,171
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	705
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	1,091

SVD-based statistics:
norm(A)	2.45666e+09
min(svd(A))	123.354
cond(A)	1.99155e+07
rank(A)	237
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

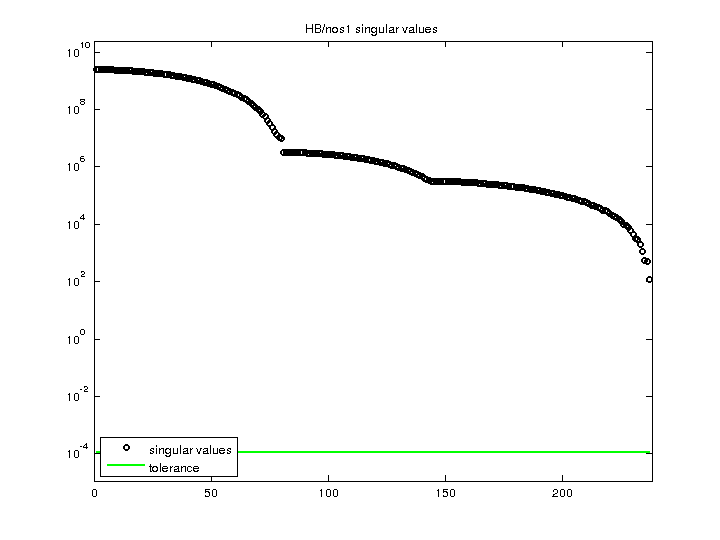

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.
